UVC Sanitizer
Instructions For Use

STEP 1

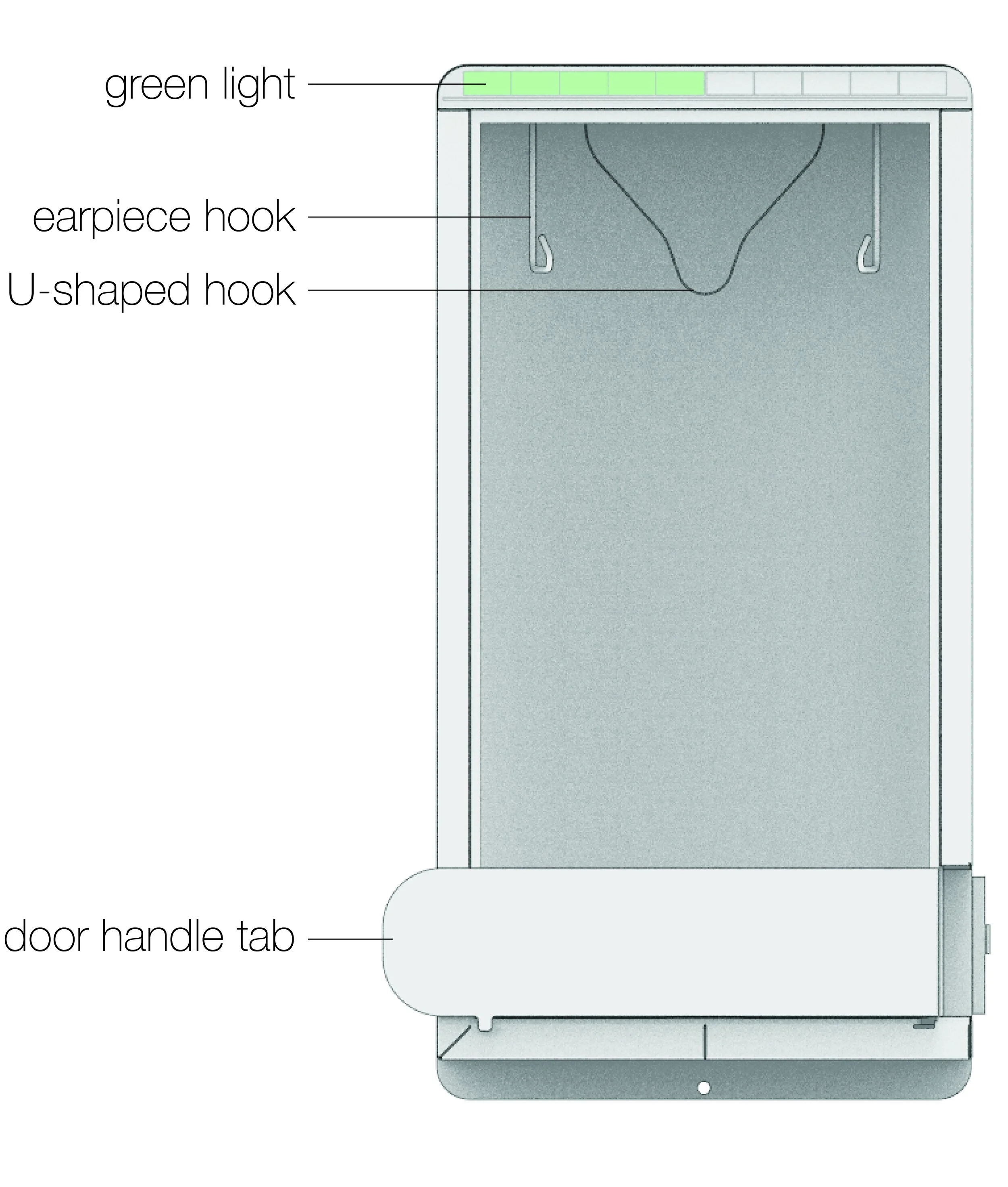

Prior to loading the stethoscope, the door should be open and the green light on, and the reflective chamber empty.

STEP 2

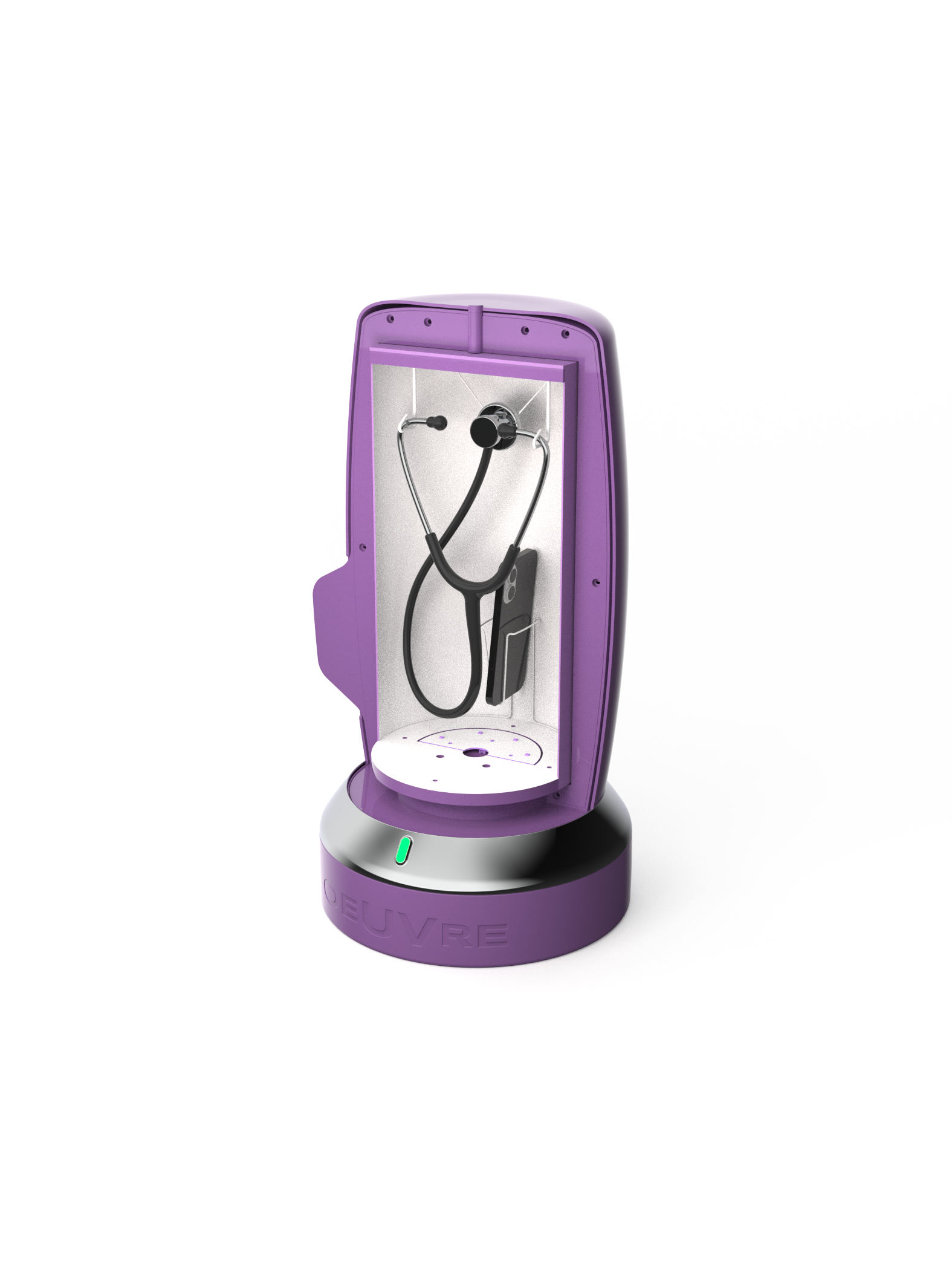

Procedure for loading stethoscope

  • Place bell onto U-shaped hook at center.

  • Place earpieces onto hooks at left and right.

  • Place tubing inside chamber behind horizontal door handle.

  • Make sure stethoscope is securely, entirely contained within reflective chamber.

STEP 3

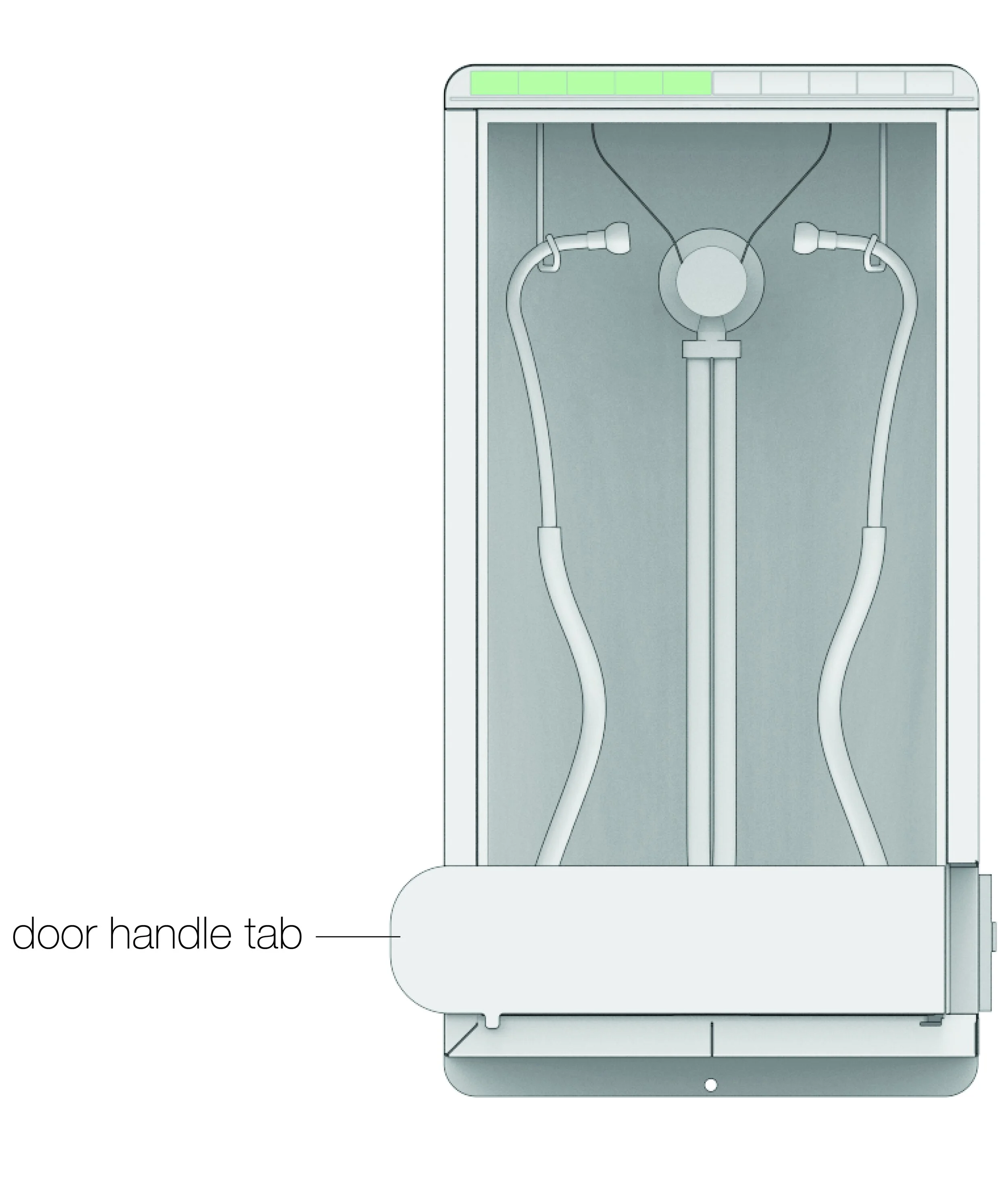

Using the door handle’s extended tab at left, pull and rotate door to the right until door handle bottoms out against the device’s housing.

STEP 4

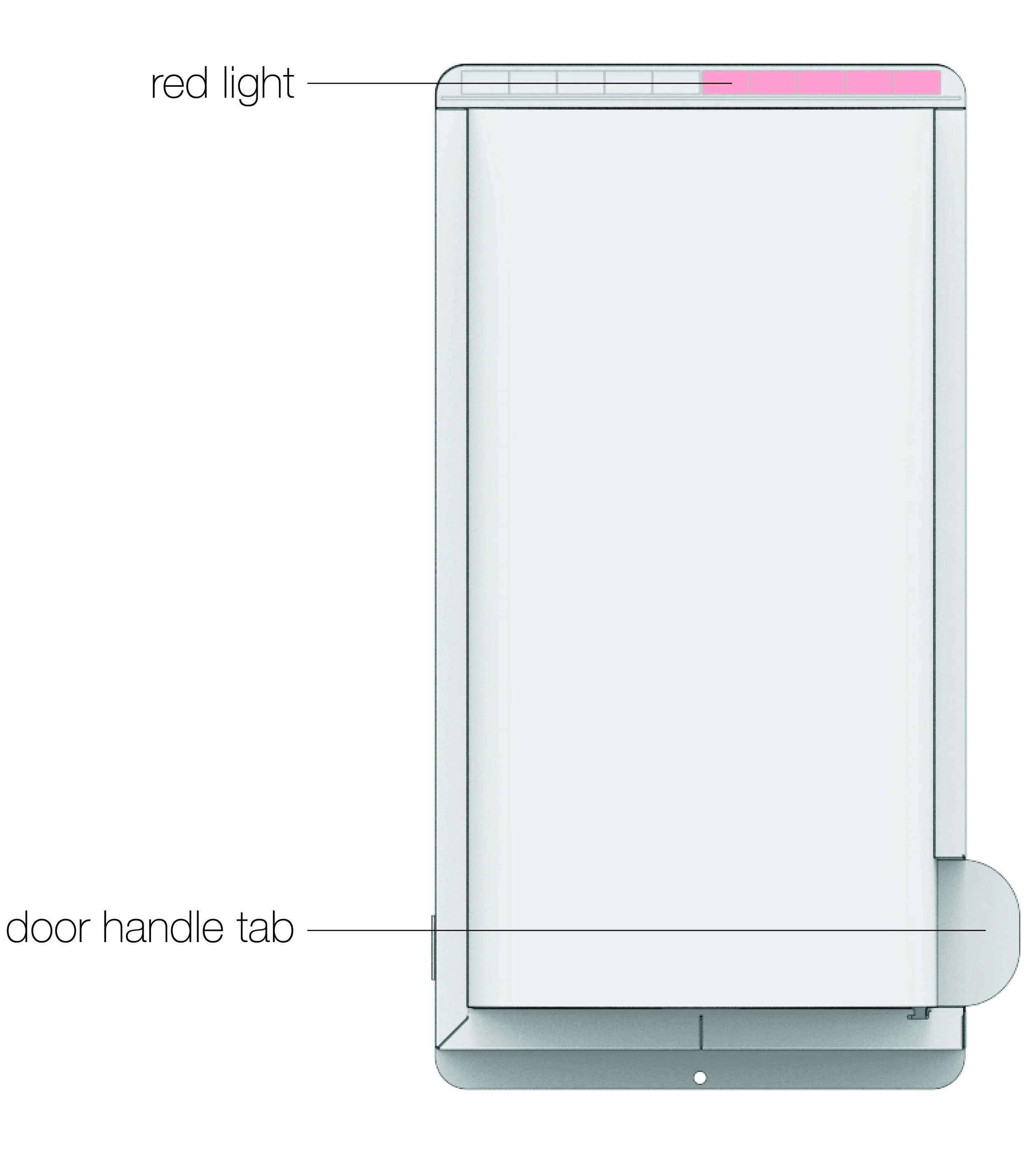

Once the door has been properly closed, the green lights will turn off, and red lights will appear at the top of the device, indicating the cleaning cycle has begun. The red lights will remain illuminated during the entire cleaning cycle. Approximately 40 seconds.

STEP 5

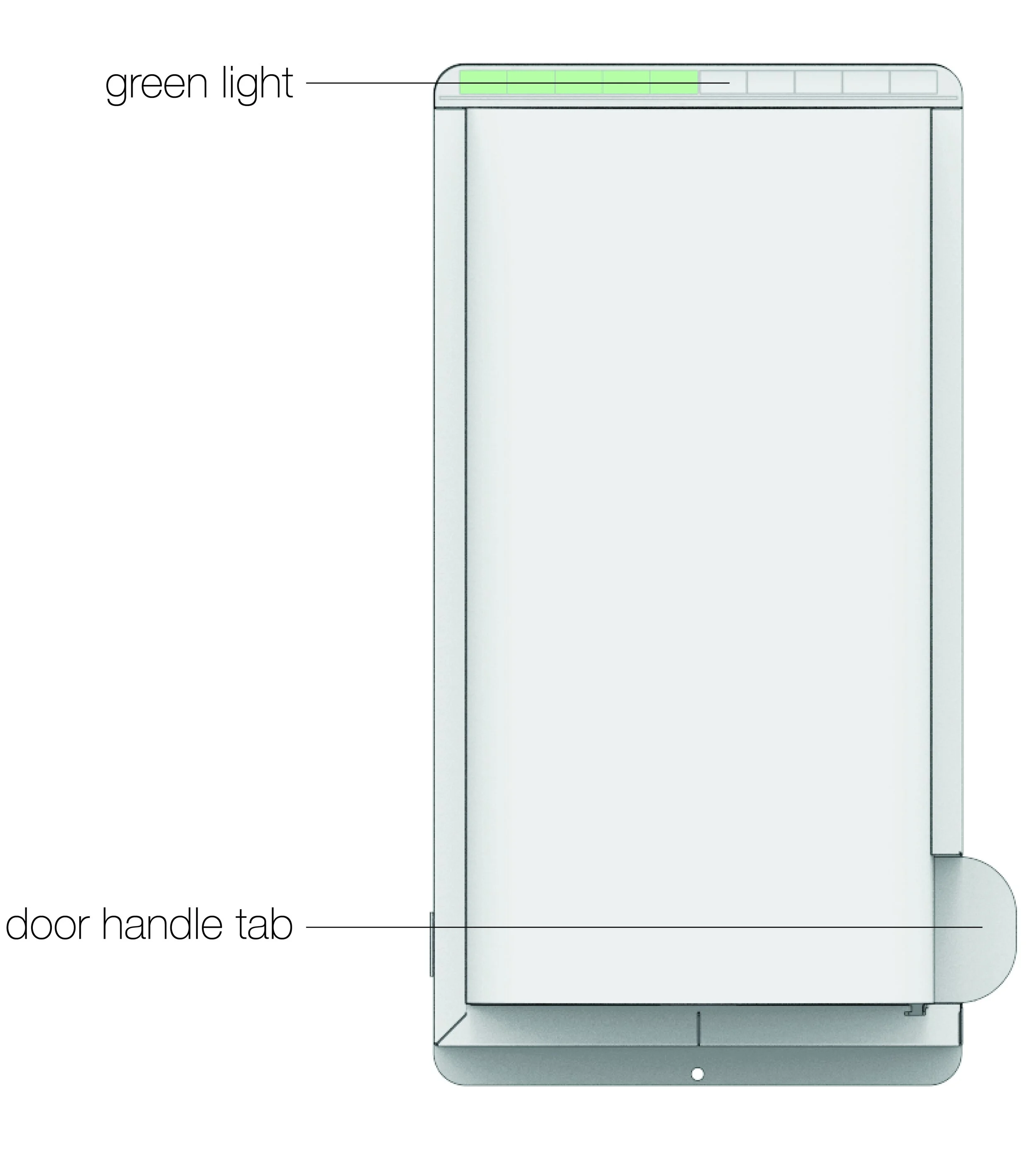

Once the cleaning cycle has ended, the red lights will turn off and the green lights will turn on, indicating that you may now open the door to retrieve the stethoscope.

STEP 6

To remove the stethoscope

  • Remove earpieces from hooks.

  • Remove bell from hook.

STEP 7

Door should remain open and the lights green for the next user.
